NEOCR: Natural Environment OCR Dataset

From TC11
Jump to: navigation, search

Datasets -> Datasets List -> Current Page

Created: 2011-10-02
Last updated: 2011-10-04

Contact Author

Robert Nagy
University of Erlangen-Nuremberg
Chair for Computer Science 6 (Data Management)
Matrensstr. 3
D-91058 Erlangen
Germany
Email: robert[dot]nagy [at] cs[dot]fau[dot]de

Current Version

Example images from the NEOCR dataset. Note that the dataset also includes images with text in different languages, text with vertical character arrangement, light text on dark and dark text on light background, occlusion, good and bad contrast..
Example of different text characteristics present in images of the NEOCR dataset, along with ground truth bounding boxes and distortion quadrangles.

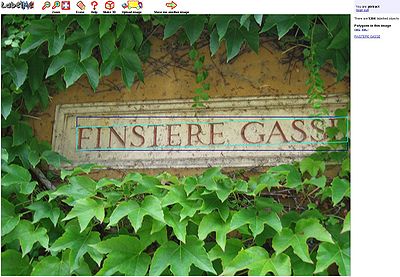

The LabelMe interface used for ground truthing.

1.0 (also available from the NEOCR Web site)

Keywords

OCR, Natural Scene, Scene Text, Word Spotting, Scene Text Recognition, Scene Text Detection, Scene Text Localization

Description

The NEOCR dataset contains 659 real world images with 5238 annotated bounding boxes (textfields). The images were taken by several people independently from the dataset, so the dataset covers a broad range of characteristics which distinguish real world images from scanned documents. All text recognizable by humans has been annotated for all images. The dataset creation process was stopped when for each metadata dimension at least 100 textfields were included in the dataset.

The ground truth contains not only the visible text, but also distortion quadrangles, which enclose the visible text much more precisely than bounding boxes. The dataset is enriched with metadata consisting of brightness, contrast, inversion, texture, resolution, noise, blur, distortion, rotation, character arrangement, occlusion, typeface and language information. The annotation is provided in XML based on the schema of LabelMe.

Metadata and Ground Truth Data

The annotation was created manually by an adaptation of the LabelMe annotation tool. All text visible and recognizable by humans has been annotated for all images. The annotation is provided in XML, the schema of LabelMe was extended to our needs. The extended XMLschema is also provided as part of the dataset. Metadata is provided globally and locally.

Global image metadata includes the filename, folder, source information, image width, height, depth, brightness and contrast. Textfield (local, bounding box) metadata contains the visible text and optical, geometrical and typographical characteristics. Bounding boxes are rectangular and parallel to the axes. Additionally distortion quadrangles are provided which enclose the visible text more precisely.

Optical characteristics include texture, brightness, contrast, inversion, resolution, noise and blur information. Texture, noise and inversion were annotated manually, the rest was computed automatically using ImageMagick. Geometrical characteristics cover distortion, rotation, character arrangement and occlusion information. Typographical characteristics contain typeface and language metadata. Please see the CBDAR paper [1], the technical report [2] or the metadata documentation for further details on the metadata.

Related Tasks

References

  1. R. Nagy, A. Dicker and K. Meyer‐Wegener, "NEOCR: A Configurable Dataset for Natural Image Text Recognition". In CBDAR Workshop 2011 at ICDAR 2011. pp. 53‐58, September 2011. (PDF), (Presentation)
  2. R. Nagy, A. Dicker, and K. Meyer‐Wegener, "Definition and Evaluation of the NEOCR Dataset for Natural‐Image Text Recognition". University of Erlangen, Dept. of Computer Science, Technical Reports, CS‐2011‐07, September 2011. (PDF)

Submitted Files

Disclaimer

By downloading and using the dataset you agree to acknowledge it's source and cite the above papers in related publications. Please link to the authors' Web page of the set as http://www6.cs.fau.de/neocr.

Version 1.0
